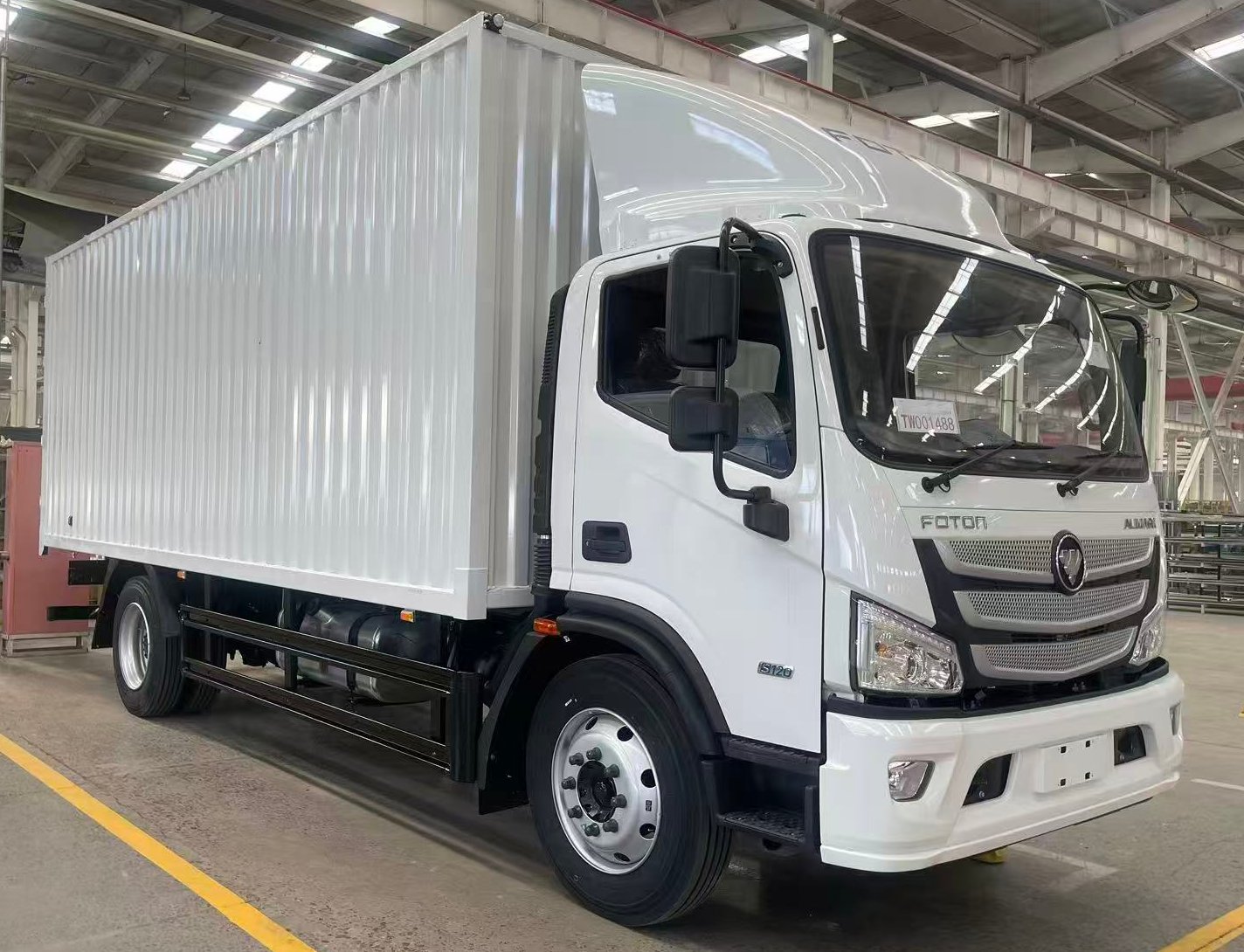

Foton Aumark S RHD Single-Cab Diesel Box Truck, GVW 12T / 8T Rear Axle, ZF 6MT, Euro III
| Vehicle Model | Aumark S Single-Cab Box Truck, GVW 12T / 8T Rear Axle |
| Stock | 100 |
| Category | Light Truck |
| Emission Standard | Euro III |
| Transmission Type | Manual |
| Drive Energy | Diesel |
| Drive Side | RHD |
| Engine Manufacturer | Foton Cummins |
Description
The Foton Aumark S is a right-hand-drive single-cab diesel box truck with a 12,000 kg gross vehicle weight and an 8-tonne rear axle, engineered for medium-distance distribution. It is powered by a Foton Cummins ISF3.8s3168 3.76-litre diesel engine producing 125 hp (168 PS) and 550 Nm of torque, meeting the Euro III emission standard, and matched to a ZF6S558 6-speed manual transmission with a 5.286 drive axle ratio and a 362 mm diaphragm spring clutch. The truck rides on a 4,700 mm wheelbase with overall dimensions of 8,225 x 2,470 x 2,505 mm and carries a 6,300 x 2,300 x 2,300 mm corrugated board cargo box, with a 2,060 mm cab width and a 3.6 T front axle. Running gear includes air brakes with front discs and rear drums, ABS (4S4M) with an automatic slack adjuster, constant-pressure exhaust brake, front and rear non-independent leaf spring suspension with a 9 / 8+6 leaf count, an 865 x 234 x 70 x 6 mm frame, tubeless 9R22.5-14 tyres in a 6+1 set including the spare, and a 200 L aluminium alloy fuel tank. Standard equipment comprises an integrated cooling and heating electric air conditioner, an MP3 entertainment system, hydraulic power steering with a recirculating ball steering gear, cruise control, halogen headlamps, fog lights, power-adjustable heated and defrosting exterior mirrors, deluxe fabric seats and a lightweight wrap-around body. Offered on an FOB Qingdao basis.
Product Details
Foton Aumark S RHD Single-Cab Diesel Box Truck — GVW 12 T / 8 T Rear Axle
Series: Aumark S | GVW 12 T | 8 T Rear Axle | 4 x 2 | Euro III | ZF 6-Speed Manual | Right-Hand Drive
PRICE TERM — FOB QINGDAO
CNY 141,600 / USD 22,131
1. General Information
| Brand | Foton |
|---|
| Series | Aumark S |
|---|
| Body | Aumark |
|---|
| Tonnage Class (BUC) | 12 T (GVW) |
|---|
| Vehicle Type | Box Truck (Light Truck) |
|---|
| Drive Type | 4 x 2 |
|---|
| Steering | Right-Hand Drive (RHD) |
|---|
| Cab Type | Single Cab |
|---|
| Cab Width | 2,060 mm |
|---|
| Seating Capacity | 3 |
|---|
| Wheelbase | 4,700 mm |
|---|
| Overall Dimensions (L x W x H) | 8,225 x 2,470 x 2,505 mm |
|---|
| Cargo Box Dimensions (L x W x H) | 6,300 x 2,300 x 2,300 mm, Corrugated Board |
|---|
| Gross Vehicle Weight (GVW) | 12,000 kg |
|---|
2. Powertrain
| Fuel Type | Diesel |
|---|
| Emission Standard | Euro III |
|---|
| Engine Model | ISF3.8s3168 |
|---|
| Engine Manufacturer | Foton Cummins |
|---|
| Displacement | 3,760 cc |
|---|
| Max. Power / Speed | 125 hp (168 PS) |
|---|
| Max. Torque | 550 Nm |
|---|
| Transmission Model | ZF6S558 |
|---|
| Transmission Type | 6-Speed Manual (MT) |
|---|
| Transmission Manufacturer | ZF |
|---|
3. Chassis, Brakes & Suspension
| Front Axle Load Capacity | 3.6 T |
|---|
| Middle / Rear Axle Load Capacity | 8 T, 385 Single-Stage Single Rear Drive Axle, Punch-Welded |
|---|
| Drive Axle Ratio | 5.286 |
|---|
| Brake Type | Air Brake |
|---|
| Brake Configuration | Front Disc / Rear Drum |
|---|
| Brake Control System | ABS (4S4M) |
|---|
| Tire Model | Tubeless Tire (Imperial) 9R22.5-14 |
|---|
| Tire Quantity | 6 + 1 (Including Spare) |
|---|
| Fuel Tank Capacity | 200 L, Aluminium Alloy |
|---|
| Suspension Type | Front Non-Independent + Rear Non-Independent Leaf Spring Suspension |
|---|
| Leaf Spring Count (Front / Rear) | 9 / 8 + 6 |
|---|
| Frame Section | 865 x 234 x 70 x 6 mm |
|---|
4. Detailed Configuration — Engine & Fuel System
| Engine / Fuel Items | ISF3.8s3168; 3.76 L; Aluminium Alloy Fuel Tank, 200 L; Standard Air Filter (with Pre-Filter); High-Position Slanted-Grille Air Intake; Standard Silicone Oil Fan Clutch; Electronic Accelerator Pedal; Carpet-Type Accelerator Pedal; No Speed Limiter; No Aftertreatment; No Urea Tank; No Engine Immobilizer; No Engine PTO; With EBP Multi-Mode Switch; 550 Nm; No Idle Start-Stop; No Engine Front Heat Insulation Pad |
|---|
5. Detailed Configuration — Transmission & Clutch
| Transmission / Clutch Items | ZF6S558; MT (Manual Transmission); Transmission Reverse Gear Position: Rear; With Transmission Reverse Switch, Fixed; Push-Pull Cable Control; Aluminium Housing Transmission; No Transmission PTO; No Retarder; φ362 mm Diaphragm Spring Clutch; Pneumatic Clutch Control; Pneumatic Clutch Booster; Transmission Odometer Ratio: 1; Speed Sensor Pulse Count: 8; Speed Sensor |
|---|
6. Detailed Configuration — Axles, Tires & Steering
| Axle / Tire Items | 3.6 t Front Axle; 8 t, 385 Single-Stage Single Rear Drive Axle, Punch-Welded; Drive Axle Ratio: 5.286; Front & Rear Axle Standard Tread Tires (Longitudinal & Lateral); No Tire Pressure Monitoring System; 1 Spare Tire; Steel Rim; 13.5 mm Wheel Spoke; 1705 / 1800; 126 x 134 x 9 |
|---|
| Steering Items | Standard Steering Wheel; Hydraulic Power Steering; Recirculating Ball Steering Gear; Mechanical, Height & Tilt Adjustable Steering Column |
|---|
7. Detailed Configuration — Brake System
| Brake Items | Air Brake; Constant-Pressure Exhaust Brake; Aluminium Alloy Air Reservoir; With Air Dryer; Front Disc / Rear Drum Brakes; With Brake Pad Wear Alarm; No Vacuum Booster; Spring Brake (Air-Off Brake); ABS (4S4M); Automatic Brake Slack Adjuster; No ESP/ESC; No EBS; No ASR Traction Control System; No EBD/EBL; No AEBS |
|---|
8. Detailed Configuration — Cab, Body & Interior
| Cab & Body Items | Width 2060, Single Cab; Flat Roof; Wrap-Around Body; Rear Protection Assembly; With Front Underrun Protection; With Fog Lights; No Daytime Running Lights; No Step Light; No Side Windows; Side Turn Signal (Wheel Arch, without Cornering Lamp); Rubber Cab Mounting; Manual Single Torsion Bar Mechanical Cab Tilt; With Air Deflector; No Deflector Panel; Lightweight Body; Without Cargo Box Accessories; No Side Protection |
|---|
| Interior & Seating Items | Gray-Beige Interior; Fabric Seats (Deluxe); No Shock-Absorbing Seat; Fixed, Non-Damping Passenger Seat; 3-Point, Non-Pretensioner Driver Seatbelt; 3-Point, Non-Pretensioner Passenger Seatbelt; 2-Point Center Seatbelt; Driver Seatbelt Unfastened Alarm; Driver Seatbelt Height Adjustable; Passenger Seat Not Adjustable; No Airbag; No Sleeper; No Coat Hooks; With Cab Heat Insulation; With Center Dashboard Storage Box; Single Overhead Document Cabinet; With Interior Rearview Mirror |
|---|
| Mirrors & Visibility | Power-Adjustable, Heated & Defrosting Exterior Mirrors; With Side Down-View Mirror; Without Heated Front Down-View Mirror; With Rear Window; Halogen Headlamps |
|---|
9. Detailed Configuration — Electrical & Driver Assistance
| Electrical Items | 24V Battery; Maintenance-Free Battery, 2 pcs, 100 A·h; Horizontal Battery Box; With Cigarette Lighter; 24V Power Socket; No Main Power Switch; No Automatic Headlights; No Remote Control; No One-Touch Lock & Window Roll-Up; No Body Anti-Theft; No Keyless Entry; No Push-Button Start; No Central Locking + Manual Window Lift + Mechanical |
|---|
| Driver Assistance Items | With Cruise Control; With Door-Ajar Warning; No Cab Tilt-Unlocked Warning; No Reverse Radar; No Reverse Buzzer; No Lane Departure Warning; No Hill-Start Assist; No Speed Alarm; No PTO Switch; No 360° Surround View; No Blind Spot Detection (BSD); No Forward Collision Warning; No Fatigue Monitoring System (FMS); No Driving Recorder / On-Board Terminal; No Wheel Chock; No Reflective Vest; No Rear Wheel Splash Guard; No Tire Blowout Emergency Device |
|---|
Standard specification sheet. Specifications are subject to change without prior notice.
