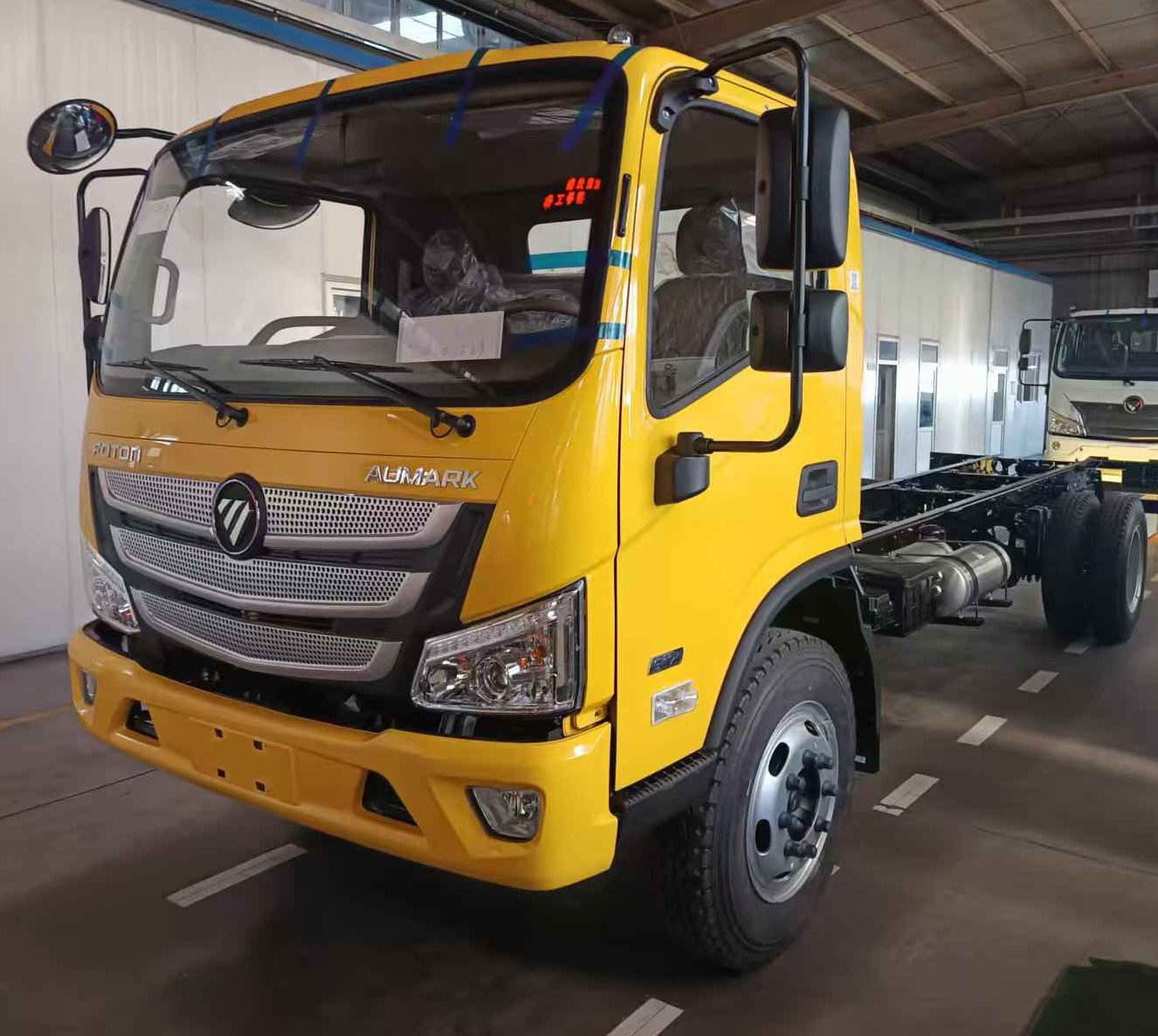

Foton Aumark S 7.5T Cargo Truck Chassis, Single Cab, 105hp, ZF 6MT, RHD
| Vehicle Model | Aumark S 7.5T Cargo Truck Chassis |
| Stock | 100 |
| Category | Light Truck |
| Emission Standard | Euro III |
| Transmission Type | Manual |
| Drive Energy | Diesel |
| Drive Side | RHD |
| Engine Manufacturer | Foton Cummins |
Description
The Foton Aumark S is a 7.5-tonne right-hand-drive single-cab cargo truck chassis designed for body building. It is powered by a Foton Cummins F3.8s3141 3.76-litre diesel engine producing 105 hp at 2,600 rpm and 450 Nm at 1,300-1,500 rpm, meeting the China III (Euro III equivalent) emission standard, and matched to a ZF 6S558 6-speed manual transmission with a 4.33 drive axle ratio. The chassis rides on a 3,360 mm wheelbase with overall chassis dimensions of 5,995 x 2,090 x 2,320 mm and an 8,500 kg gross vehicle weight, supported by a 2.85 t front axle and a 6 t middle/rear axle. It is fitted with 7.50R16-14 tubeless radial tyres (6 + 1 including spare), air brakes with front and rear drums and a load-sensing proportioning valve, a 120 L fuel tank, front and rear leaf spring suspension (3 / 4+2 leaves) and a 214 x 65 x 5 mm frame section. Standard equipment includes electric air conditioning, MP3, manual windows and mirrors, power steering and deluxe fabric seats. Offered on an FOB Qingdao basis.
Product Details
Foton Aumark S 7.5T Cargo Truck Chassis, Single Cab, 105hp, ZF 6MT, RHD
Aumark S | China III | 6-Speed Manual | 4 x 2 | GVW 8,500 kg | Right-Hand Drive
PRICE TERM — FOB QINGDAO
USD 16,861
1. General Information
| Brand | Foton |
|---|
| Series | Aumark |
|---|
| Model Code (BUB) | Aumark S |
|---|
| Tonnage Class (BUC) | 7.5 T |
|---|
| Vehicle Status | Cargo Truck Chassis (without cargo box) |
|---|
| Drive Type | 4 x 2 |
|---|
| Steering | Right-Hand Drive (RHD) |
|---|
| Cab Type | Single Cab |
|---|
| Wheelbase | 3,360 mm |
|---|
| Overall Chassis Dimensions (L x W x H) | 5,995 x 2,090 x 2,320 mm |
|---|
| Body Width | 2,060 mm |
|---|
| Gross Vehicle Weight (GVW) | 8,500 kg |
|---|
| Seating Capacity | 3 |
|---|
2. Powertrain
| Fuel Type | Diesel |
|---|
| Emission Standard | China III (Euro III equivalent) |
|---|
| Engine Model | F3.8s3141 |
|---|
| Engine Manufacturer | Foton Cummins |
|---|
| Displacement | 3,760 cc |
|---|
| Max. Power | 105 hp / 2,600 rpm |
|---|
| Max. Torque | 450 Nm / 1,300-1,500 rpm |
|---|
| Transmission Model | 6S558 |
|---|
| Transmission Type | 6-Speed Manual (ZF) |
|---|
| Front Axle Load Capacity | 2.85 T |
|---|
| Middle / Rear Axle Load Capacity | 6 T |
|---|
| Drive Axle Ratio | 4.33 |
|---|
3. Chassis, Brakes & Suspension
| Brake Type | Air Brake |
|---|
| Brake Configuration | Front & Rear Drum |
|---|
| Brake Control System | Load-Sensing Proportioning Valve |
|---|
| Tire Model | 7.50R16-14, Tubeless Radial (Imperial) |
|---|
| Tire Quantity | 6 + 1 (Including Spare) |
|---|
| Fuel Tank Capacity | 120 L |
|---|
| Suspension Type | Front & Rear Leaf Spring Suspension |
|---|
| Leaf Spring Count (Front/Rear) | 3 / 4+2 |
|---|
| Frame Section (mm) | 214 x 65 x 5 |
|---|
4. Basic Configuration
| Basic Configuration Summary | No airbag / Front & rear drum brakes, standard ratio (automatic slack adjuster) / Manual cab tilt / No air deflector / No ADAS / Without cargo box / Tubeless tires (Imperial) 7.50R16 14PR / Manual windows, doors & mirrors / No driving recorder / No stabilizer bar / Power steering / Deluxe fabric seats / PTO |
|---|
| Air Conditioning | Electric A/C |
|---|
| Entertainment System | MP3 |
|---|
| Windows/Doors & Mirror Control | Manual windows & doors + manual mirrors |
|---|
Standard specification sheet. Specifications are subject to change without prior notice.
