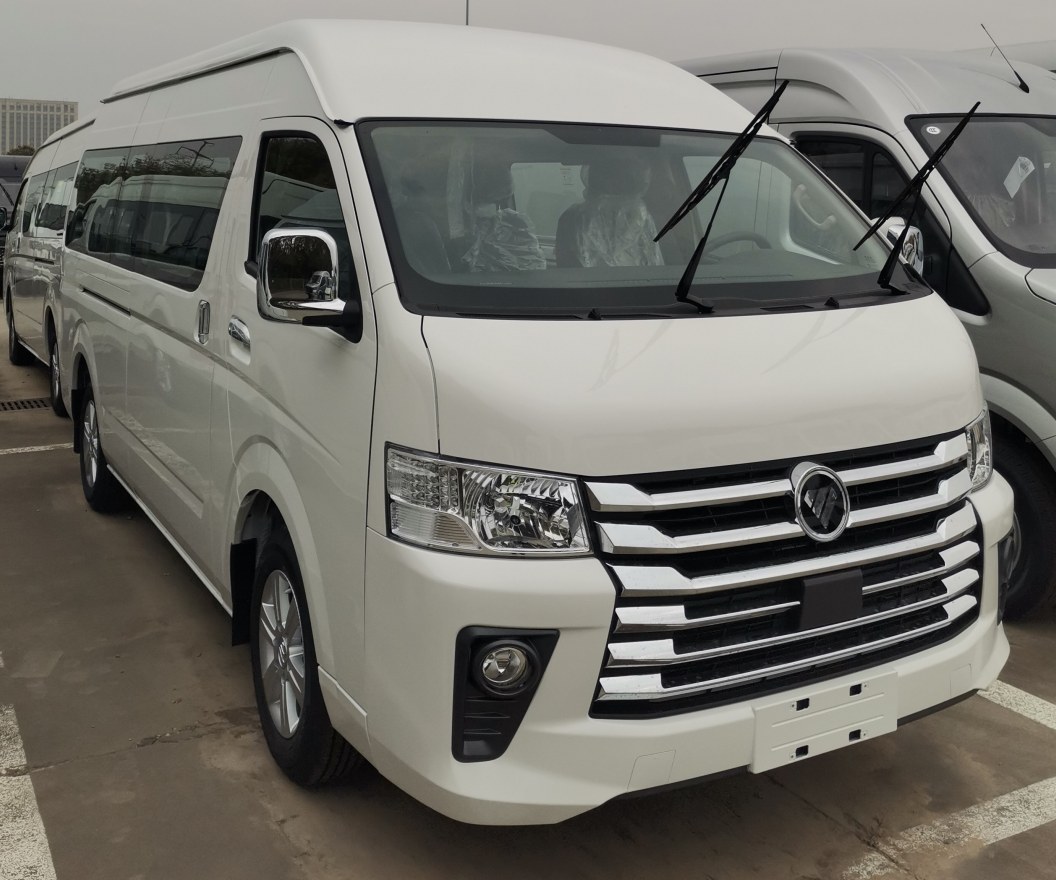

Foton View G9 High-Roof 19-Seat LHD Diesel Passenger Van (Euro IV)
| Brand | Foton |
| Model | VIEW CS2 |
| Vehicle Model | View G9 High-Roof 19-Seat Passenger Van |
| Stock | 100 |
| Category | Van |
| Emission Standard | Euro IV |
| Transmission Type | Manual |
| Drive Energy | Diesel |
| Drive Side | LHD |
| Engine Manufacturer | Foton Cummins |
Description
The Foton View G9 is a high-roof, 19-seat light passenger van built for comfortable and efficient passenger transport. It is powered by a Foton Cummins ISF2.8s4148V 2.8 L diesel engine producing 110 kW and 330 Nm, matched to a ZM025E 5-speed manual transmission with a 4.875 drive axle ratio, meeting the Euro IV emission standard. The vehicle has a 3720 mm wheelbase and a fully enclosed body of 5990 x 1920 x 2320 mm, with a 4000 kg gross vehicle weight and a 2435 kg curb weight. Safety and comfort features include vacuum servo hydraulic brakes with a front disc / rear drum layout, ABS + EBD with ESP/ESC, front and rear air conditioning plus a front heater, an MP3 entertainment system, body-colour front and rear bumpers, a rear parking radar, power-adjustable heated mirrors, forward push-out sliding windows and knitted seats. Left-hand drive configuration, offered on an FOB Qingdao basis.
Product Details
Foton View G9 High-Roof 19-Seat LHD Diesel Passenger Van
Model Code: VIEW CS2 | Euro IV | Left-Hand Drive | 19 Seats
PRICE TERM — FOB QINGDAO
CNY 145,000 / USD 22,627.74
1. General Information
| Brand | Foton |
|---|
| Series | View |
|---|
| Model Code | VIEW CS2 |
|---|
| Vehicle Status | Complete Vehicle |
|---|
| Application | Passenger Transport |
|---|
| Drive Type | 4 x 2 |
|---|
| Wheelbase | 3720 mm |
|---|
| Overall Dimensions (L x W x H) | 5990 x 1920 x 2320 mm |
|---|
| Curb Weight | 2435 kg |
|---|
| Gross Vehicle Weight (GVW) | 4000 kg |
|---|
| Body Width | 1920 mm |
|---|
| Roof Type | High Roof |
|---|
| Steering | Left-Hand Drive (LHD) |
|---|
| Cab Configuration | Fully Enclosed Body |
|---|
| Seat Count / Passenger Capacity | 19 |
|---|
2. Powertrain
| Fuel Type | Diesel |
|---|
| Engine Model | ISF2.8s4148V |
|---|
| Engine Manufacturer | Foton Cummins |
|---|
| Displacement | 2800 cc |
|---|
| Emission Standard | Euro IV |
|---|
| Max. Power | 110 kW |
|---|
| Max. Torque | 330 Nm |
|---|
| Transmission Model | ZM025E |
|---|
| Transmission Type | 5-Speed Manual (5MT) |
|---|
| Transmission Manufacturer | Zhongma |
|---|
| Drive Axle Ratio | 4.875 |
|---|
3. Brake System
| Brake Type | Vacuum Servo Hydraulic Brake |
|---|
| Brake Configuration | Front Disc / Rear Drum Brake |
|---|
| Brake Control System | ABS + EBD, with ESP/ESC |
|---|
4. Wheels, Chassis & Suspension
| Tire Model | 215/75R16LT-112/109-10PR-Q |
|---|
| Tire Quantity | 4 + 1 (Including Spare) |
|---|
| Fuel Tank Capacity | 65 L |
|---|
| Suspension Type | Front Double Wishbone Torsion Bar Spring, Rear Leaf Spring |
|---|
| Leaf Spring Count | 3 + 1 Rear Leaf Springs |
|---|
5. Basic Configuration
| Climate Control System | Front A/C + Rear A/C + Front Heater |
|---|
| Entertainment System | MP3 |
|---|
| Bumper | Body-Colour Front and Rear Bumpers |
|---|
| Radar | No Front Radar, with Rear Radar |
|---|
| Body Combination (Seats, Doors/Windows, Mirrors) – Standard | Power-Adjustable, Heated & Defrosting, No Side Turn Signals, Chrome-Plated Rear-View Mirrors with Cover + Forward Push-Out Sliding Windows + Knitted Seats |
|---|
Standard specification sheet. Specifications are subject to change without prior notice.
